Vein Finder

      Vein Detecting Light Source Near infrared light

* Infrared Light Wavelength 850 nm

*  Battery Lithium-ion Battery, 3.6V, 4300mAh

*Continuous Run Time 4 hours   * Battery Charge Time 3 hours

*  AC Power Suplly 100-240VAV, 50-60Hz, 0.4A

* Battery Charge Power 5VDC, 2A   Weight 490g

*Dimension (L*W*H) 240mmx60mmx60mm   Best Imaging Distance 20±2cm

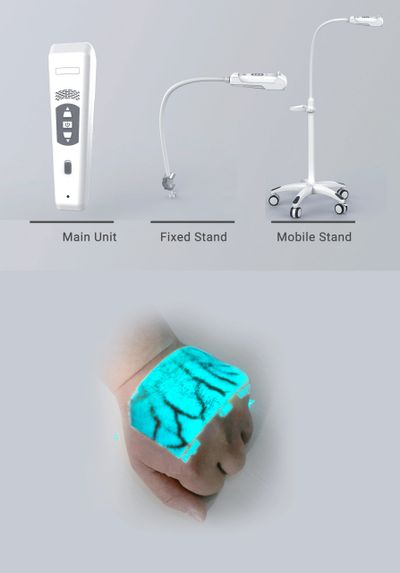

*The LVD-261 box contain the main unit ,battery and the charging base.Optional mobile support and fixed support.

       portable vein finding device. It can project the blood vessels image on skin surace accurately and timely.

The ergonomic design makes it very comfortable to hold. And the option-

al desktop stand and mobile trolley are available for multiple application situations.

Help doctors and nurses easily find veins of various patients, such as obesity, hairy or dark skin people,etc. It highly increases the success rate of puncture thus reduces the cost and pain.

Pediatrics/ Plastic Surgery / Vascular Surgery / Oncology / Radiology / Laboralory / Emergency / Outpatient

This machine has various user-defined functions, which can adapt to different ages, body

shapes, skin colors, weights and various operating environments.

 *12 Colors Available:Suitable for different skin colors or environments.

* 3 Sizes Available: Suitable for adults, children and newborns

*6 Levels of Brightness: Adjust the projection image to the most comfortable brightness

* Inversion: Reduce arm hair interference and make blood vessels clearer

* Enhancement Mode：  Enhance the darity of blood vessel detection

* Sleep Mode: enter into low power mode when the user needs short intervals and can be waked up quickl

Power monitoring The remaining battery is displayed on the screen, alert the user

when the battery is low

* Lauguage:10 languages can be switched

* Photograph: Store venous images for medical staff to track and analyze pathology

Automatical shutdown without operation for 35 minutes.

     two kinds of imaging mode, one-click

     switching freely, Auto-sleep function, provide pen to mark   the map of vasculature.
     Effective positive projection distance: 29cm~31cm
     Light projection: 300lux~1000lux
     Active radiation contains wavelength light: 750nm~980nm
     Electrical source: lithium ion polymer batteries
     service voltage: d.c. 3.0V~4.2V
     Net weight: 0.28±0.02kg
     Prevent into the liquid level: IPX0
     Net weight:   0.28±0.02kg

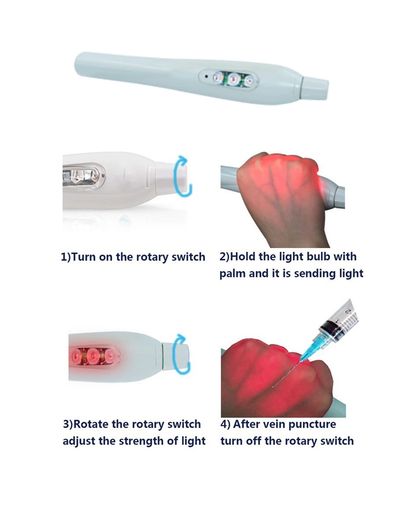

      *Small in size. light   in weight, easy to carry
      * Adjustable light, wide application range
      *Sensitive switch, safe and power saving
      *Fit human body engineering, more comfortable grip
      *Rechargeable lithium battery
      *Working Voltage: 5.0V-8.4V
      *Working Current: 0.98 A-1.12 A
      Illuminance: 26000lux-27000lux

      Dimension: L*W*H=190* 35*35mm(±2mm)
      Net weight: 84g(±5g)
