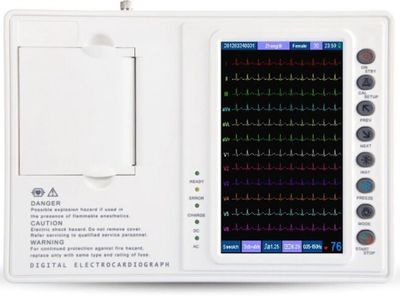

3 Channel- Model: ECG-1203D
Product information
l 7inch 480*800 touchscreen color display
l Patient name, sex, age and hospital name can be input by
touchscreen soft keyboard and printed on ECG reports
l 80mm*20m roll type thermal paper
l 12-lead ECG simultaneous acquisition and display on the ECG screen
l Multiple Operation models: Manual/Auto/Rhythm analysis
l 3-lead recording with a rhythm lead
l Digital filters to eliminate EMG/AC interference and prevent baseline drift.
l ECG reports with auto interpretation
l Lead-off detection
l Built-in rechargeable 1800mAh Li-ion battery, 2 hours continuous working
l 110-240V,50/60Hz AC power supply
l 200 patient reports save/replay (support external SD card)
l Built-in USB/RS232 interface.

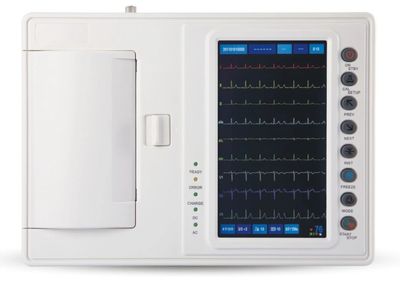

6 Channels- Model: ECG-1206A
Product information
l 7inch 480*800 touchscreen color display
l Patient name, sex，age and hospital name can by input by touchscreen soft keyboard and printed on ECG reports.
l 110mm*20m roll type thermal paper
l 12-lead ECG simultaneous acquisition and display on the ECG screen
l Multiple Operation models: Manual/Auto/Rhythm analysis
l 6-lead recording with a rhythm lead
l Digital filters to eliminate EMG/AC interference and prevent baseline drift.
l ECG reports with auto interpretation
l Lead-off detection
l Built-in rechargeable 1800mAh Li-ion battery, 2 hours continuous working
l 110-240V,50/60Hz AC power supply
l 200 patient reports save/replay (support external SD card)
l Built-in USB/RS232 interface.

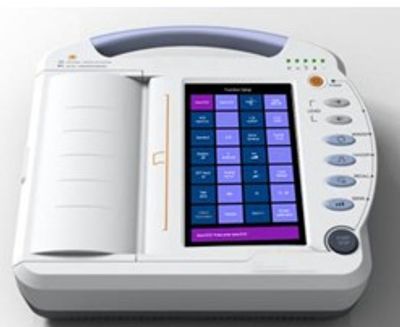

12 Channels---Model: ECG-1212A
Product information
l 10inch 1024*600 touchscreen
l Patient name, sex，age and hospital name can by input by touchscreen soft keyboard and printed on ECG reports.
l 216mm*20m roll type thermal paper
l 12-lead ECG simultaneous acquisition and display on the ECG screen
l Multiple Operation models: Manual/Auto/Rhythm analysis
l 12-lead recording with a rhythm lead
l Digital filters to eliminate EMG/AC interference and prevent baseline drift.
l ECG reports with auto interpretation
l Lead-off detection
l Built-in rechargeable 4400mAh Li-ion battery, 2 hours continuous working
l 110-240V,50/60Hz AC power supply
l 200 patient reports save/replay (support external SD card)
l Built-in USB/RS232 interface.
