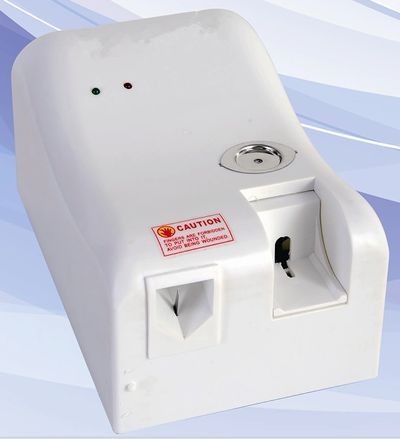

Model: SD-200
Product information
l Power: AC 110V±10%/220V±10%; DC 6V
l Melting method: melt with low pressure, high temperature; mechanic cutting of the body
l Melting efficiency: take 20ml syringe body as reference, can melt syringe (Φ1.2mm length 35mm) approximately 3 seconds; destroy the body within 4 seconds;
l Working time: can destroyer around 240 continuously (take 20ml syringe body as reference)
l Working noise:≤50 dB
l Electrode chip working voltage: AC 8V
l Power: ≤130VA
l Electrode chip superheating protection temperature: 85℃
Features
l can working under AC power source only;
l low voltage electric shock can melt the needle instantly; mechanic cutting can melt syringe body, double superheating protection is provided;
l Surplus liquid in the syringe can be boiled off instantly and no pollution;
l There will some electrical spark which is normal during melting;
l Indicator light sparks during melting, showing the needle is under destroying, the whole process is finished in 1 to 3 seconds.
l Destroy Needle specifications 18G---34G
Package
l Single unit Dimension: 37cm x 28cm x 27cm Gross weight: 5.5kg
l 6 pcs/carton Dimension: 52cm x 36cm x 67cm Gross weight: 24kg
l Normative collocation: power line, operation manual, approval certification,

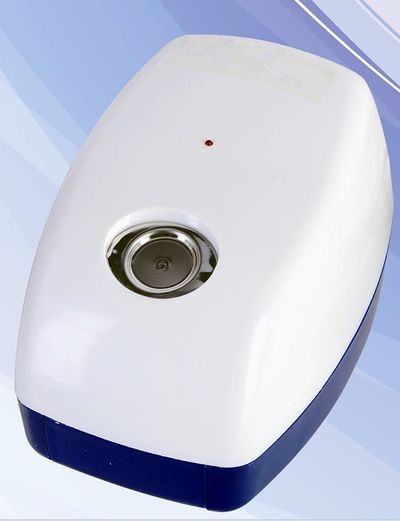

Model: SD-100
Product information
l Power: AC 110V±10%/220V±10%; DC 6V
l Melting method: melt with low pressure, high temperature;
l Working time: can destroyer around 240 continuously (take 20ml syringe body as reference)
l Working noise:≤50 dB
l Electrode chip working voltage: AC 8V
l Power: ≤130VA
l Electrode chip superheating protection temperature: 85℃
Features
l Can working under AC power source only;
l Low voltage electric shock can melt the needle instantly; mechanic cutting can melt syringe body, double superheating protection is provided;
l Surplus liquid in the syringe can be boiled off instantly and no pollution;
l There will some electrical spark which is normal during melting;
l Indicator light sparks during melting, showing the needle is under destroying, the whole process is finished in 1 to 3 seconds.
l Destroy Needle specifications 18G---34G
Package
l Single unit Dimension: 25cm x 22cm x 18cm Gross weight: 2kg
l 18 pcs/carton Dimension: 54cm x 44cm x 42cm Gross weight: 27kg
l Normative collocation: power line, operation manual, approval certification, warranty card
